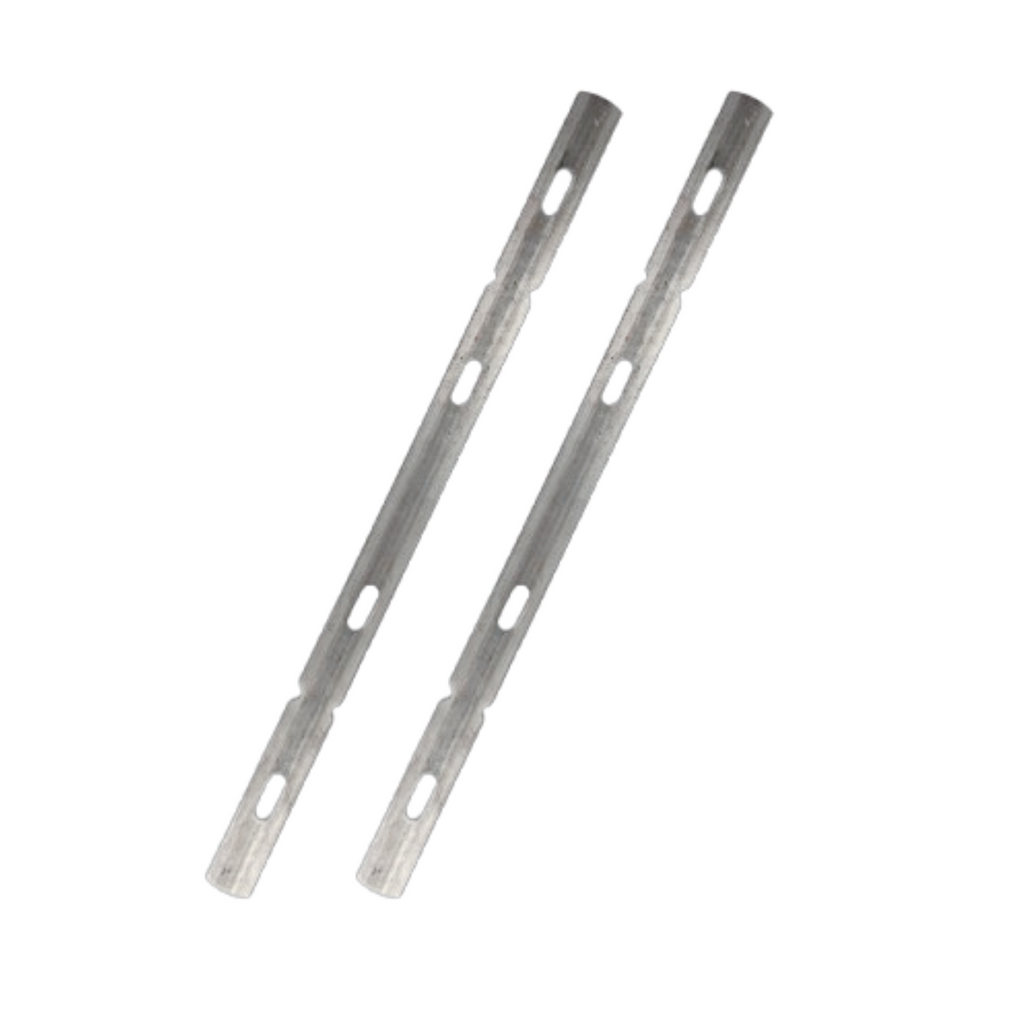

X‑Flat Ties

X-Flat Ties are steel flat-bar form ties used in modular concrete form systems to secure and space form panels, ensuring consistent wall thickness and resisting lateral pressure from freshly placed concrete. These are designed for use with typical wedge-bolt or wedge-pin fastening systems in steel-ply or modular wall formwork.

They are inserted through form panels and secured with a wedge bolt; after concrete curing, they are broken or cut back flush with the wall surface.

• Ensures uniform predetermined wall thickness across formwork by spacing panels correctly.
• Standard break-back (after cure) can be ¼″ flush or close-to-flush, which helps minimize protrusion and surface finishing.
• Available in a wide range of lengths (e.g., 4″ to 24″ for certain models) to accommodate different wall thicknesses.
• Helps prevent form collapse or panel bowing under hydrostatic pressure of the wet concrete.

• Wall formwork for concrete walls, foundations, columns, where modular or steel-ply form panels are used.
• Works with wedge-bolt systems in steel-ply or modular forming systems.
• Any construction project needing consistent wall thickness, strong tie-system support and reliable form-tie performance (commercial, residential, industrial).
