Insulated Concrete Forms

CONTACT FOR PRICING AND AVAILABILITY

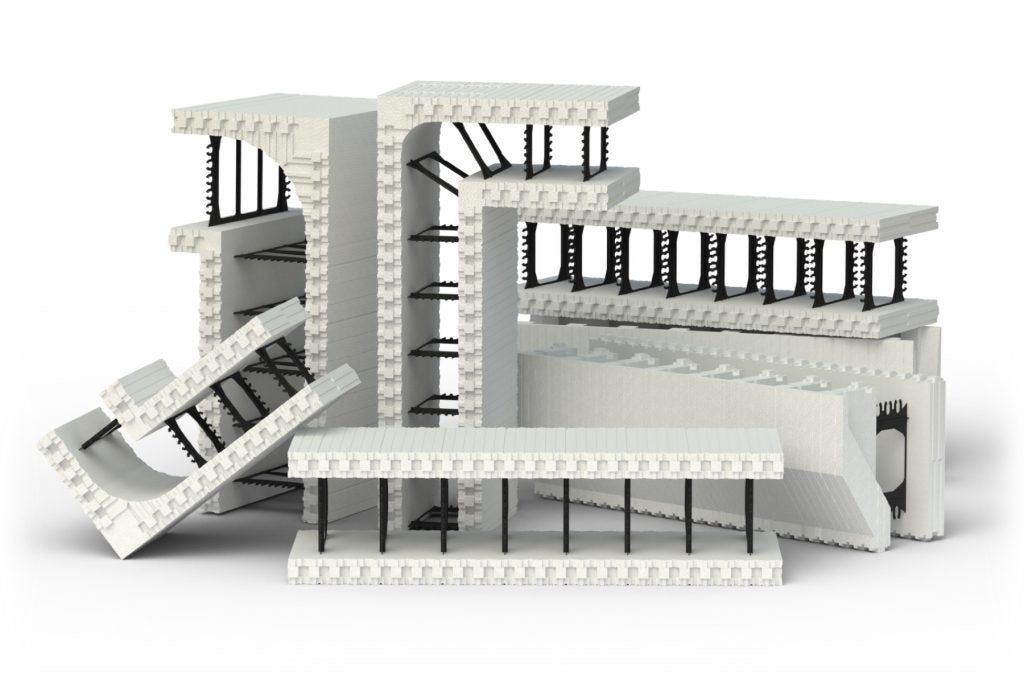

Amvic™ ICF R22 is a strong, energy-saving Insulated Concrete Form (ICF) block system. It serves multiple purposes in one: forming the structure, insulating, acting as an air/vapour barrier, and providing a surface for finishes. With an intuitive, interlocking, and reversible design, it's quick to install and produces very little construction waste. Available in a wide range of shapes, sizes, and wall thicknesses, it supports flexible design—making it a smart, durable choice for building projects.

• 5-in-1 System: Combines formwork, insulation, air/vapor sealing, and finish attachment into one block.
• Quick Lock Interlock & Reversible Blocks: Speeds up installation and reduces waste.
• Multiple Core Sizes & Shapes: Includes various thicknesses (e.g., 4", 6", 8", 10", 12") and forms (straight, corners, brickledge, tapered top, T-block, radius) for versatile applications.
• Low Waste Production: Designed to minimize on-site material waste.

These blocks are suitable for a wide range of construction needs, including:

• Below-grade foundation walls
• Frost wall construction
• Building additions
• Multi-storey residential and commercial walls
• Shared or partition walls in high-rise buildings

Thermal Resistance (R-value):

• One version delivers R-22 (hr·ft²·°F/Btu) — approximately 3.87 m²·K/W.
• Another higher-performance option offers R-30 — about 5.28 m²·K/W.

Panel (EPS) Thickness:

• R-22 version: 2.5 in (63.5 mm).
• R-30 version: 3.25 in (82.5 mm).

Web Spacing:

• R-22: 6 in (152 mm) on center.
• R-30: 8 in (203 mm) on center.

Available Core Depths & Block Types:

• R-22: 4", 6", 8" at 16" height; 10", 12" at 24" height.
• R-30: 6", 8" at 16" height
• Block styles: straight, 90° corner, 45° corner, tapered top, brick ledge, T-block, radius.
